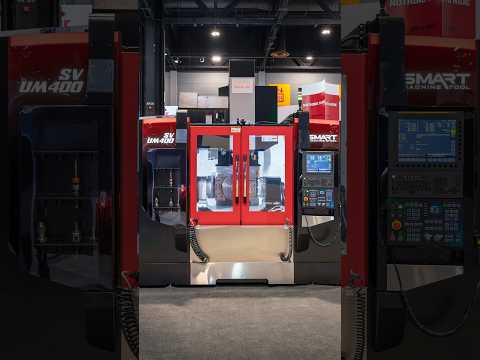

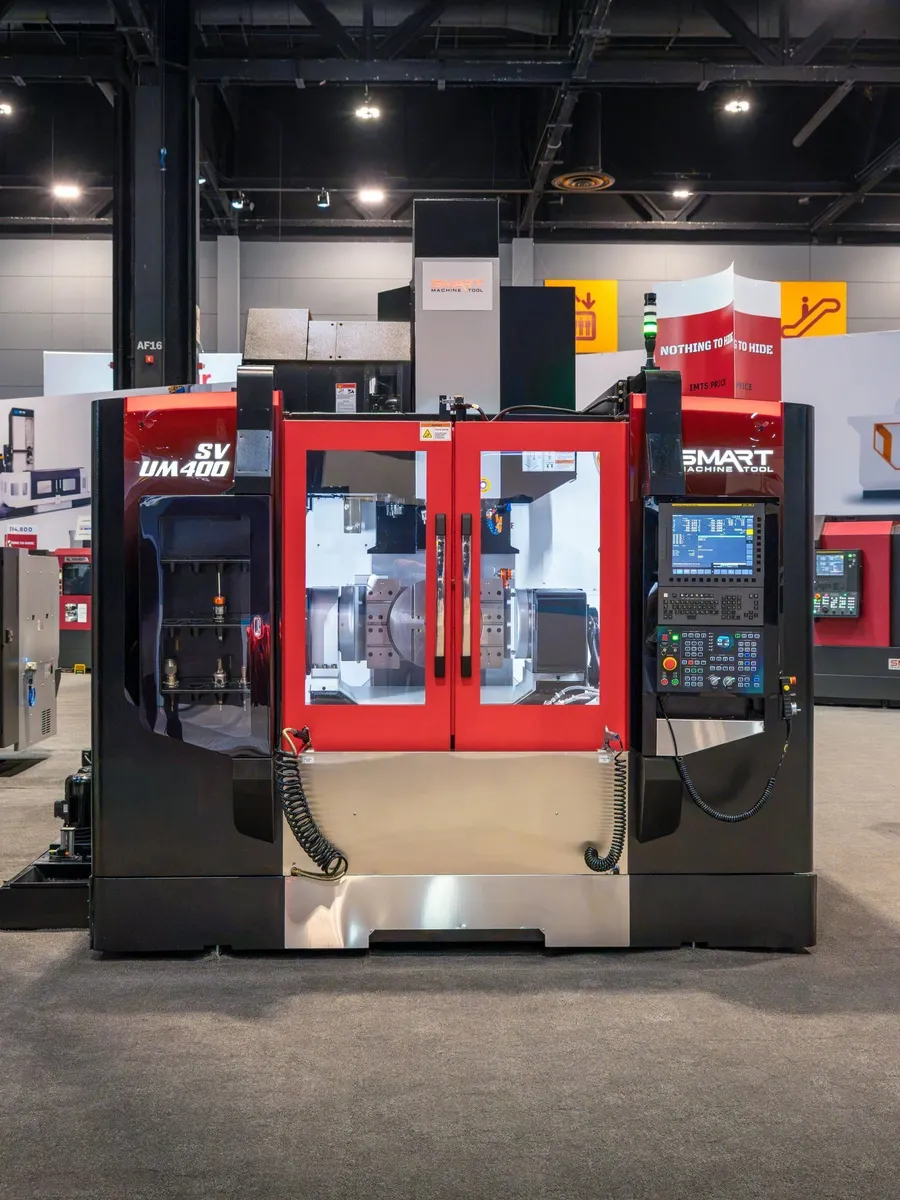

New SMART MACHINE TOOL SV-UM400 | Vertical Machining Centers

CAPACITY

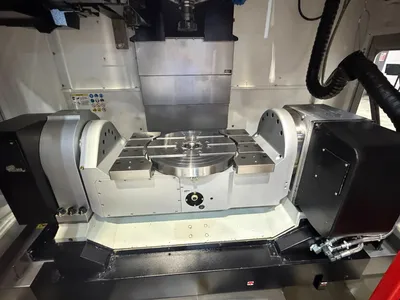

A axis travel 150 (+30 / -120)
C axis travel +/-360 Degree
X axis travel 27.55”
Y axis travel 20.08”
Z axis travel 19.68”
Table size (rectangle) 24.4” x 15.75”
Rotary table size (Diameter) 16.14”
Table loading capacity vertical 440 lbs.
Table loading capacity horizontal 330 lbs

SPINDLE
Distance from spindle to table 2.80” – 22.48”
Spindle Taper CAT 40
Spindle Speed 12,000 rpm
Spindle Motor 14.8 hp
Spindle Torque (MAX) 51.63 ft.-lbs.

AUTO TOOL CHANGER
Magazine capacity 30
Tool shank BIG PLUS 40

FEED RATE
Rapid traverse ( X / Y / Z ) 1,181 ipm / 1,181 ipm / 1,181 ipm
Slide Ways Roller Guideway

GENERAL
CNC Model Fanuc OiMF

SMART PACKAGE:
●Fanuc Oi-MF Plus Type 2 control with 15” screen
●AC-axis linear scale system (Fagor)
●30 Tools Double Arm ATC
●Full Enclosed Splash Guard
●External flood coolant
●Coolant thru spindle (20 bar)
●Air gun & wash hose
●Remote manual pulse generator with handwheel interrupt
●Scraper type conveyor
●Heat exchanger for electrical cabinet
●Spindle thermal compensation

SMART 4+1 PACKAGE:
●Tilted working plane (G68.2)
●Renishaw Primo 3DTS package
●Primo part setter & 3D tool setter
●Manual Guide i
