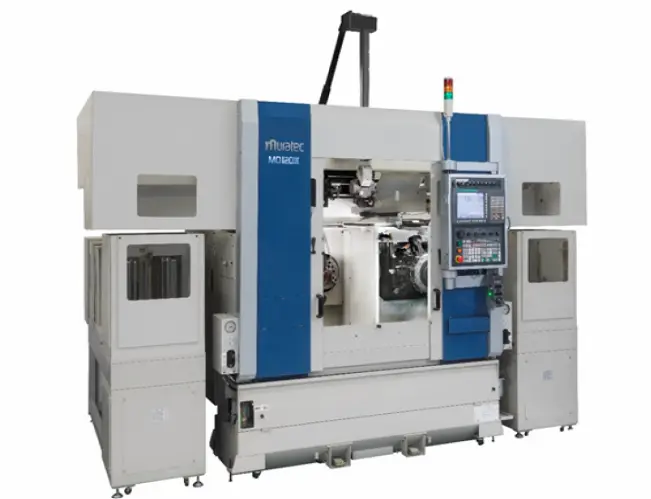

MURATEC MD120G II TWIN SPINDLE CNC TURNING MACHINE WITH LIVE
TOOLING AND GANTRY LOADER
1 $365,900 $365,900
RECHUCK STATION WITH GUARDING AND INTERLOCK
Includes:- Guarding and Interlock Door- Part Present Sensor

Jigs are quoted separately
1 $4,116 $4,116
RECHUCK JIG
FOR 120 OR SMALLER SIZE MACHINES
1 $524 $524
WORK CLAMP CONFIRMATION FOR EX & II
Verifies that the drawbar stroke for clamp to unclamp has occurred.
MW120 and MW100 machines with EX or II specs include high speed chuck sensors as
standard.
1 $0 $0
TURRET MIX BLOW BOTH SIDES
A solenoid is added which allows air, or coolant, or both to be run through the turret and
out the tool head coolant ports.
1 $3,453 $3,453
CHIP CONVEYOR, HINGE TYPE, REAR DISCHARGE 1 $7,896 $7,896
COOLANT FILTRATION SYSTEM - BOTH SIDES - 300 PSI
INCLUDES:
(2) BAG FILTERS PER SPINDLE WITH VALVES TO ALLOW ONE FILTER TO BE
CHANGED WHILE THE MACHINE IS RUNNING.
MOUNTED ON REAR OF MACHINE.
RATED FOR 300 PSI.

FOR USE WITH 10KG COOLANT PRESSURE UPGRADE or MW400 MACHINES
1 $16,968 $16,968
10KG COOLANT PRESSURE UPGRADE - BOTH SIDES 1 $9,081 $9,081
SMALL WORK FEEDER TABLE ASSEMBLY WF14L-160
INCLUDES LIGHT CURTAIN AND GUARDING AND FRONT DOOR WITH INTERLOCK

14 stations
Max stacking height of 450mm / 17.7in.
Part OD range of 30 - 160mm / 1.18 in. - 6.29 in.
Max weight per pallet 35 Kg / 77 lb.
Includes interface cables
Pallets quoted separately
1 $19,500 $19,500
STANDARD PALLET (3 POLE ADJUSTABLE) 160II
PART OD RANGE OF 30 - 160MM
14 $546 $7,644
2M POWERED OUTFEED CONVEYOR
Includes:
Guarding for pinch points and safety tunnel
Interlock door for access to pick-up / drop-off area
Adjustable speed
Continuous or Pitch Feed
Manual controls for Conveyor Jog, Conveyor Stop
Sensor for Part Present at Drop-off Point
Sensor for Part Clear at Drop-off Point
Sensor for Conveyor Full
Part Stop / Locator at end of conveyor if needed
One (1) lane with Side Rails and Drip Pan
FANUC PLUS CONTROL INCLUDES:
Part Program Storage & Edit 4 MB
No. of registerable programs Total 1,000 pairs
Custom Macro B (82 Common Variables)
Additional 600 Common Variables for Custom Macro B
Cycles for Turning (G70 - G76)
Multiple Repetitive Canned Cycles Type I & II for Drilling (G80 - G89)
Polar Coordinate Interpolation
Rigid Tapping
Variable Lead Thread Cutting
Thread Cutting Cycle Retract
Tool Offset Measurement Value Direct Input B
Programmable Tool Geometry and Wear Offset Input (G10)
Inch/Metric Conversion
Chamfer and Corner Radius by G-code
Displaying Operation Time and Number of Parts
Patternize
Spindle speed , surface speed S-code (4-digit)
Work Coordinate Setting (G-54-G59)
Increment System 1/10
Ethernet Function/100 Base
Tool Offset measurement Value Direct Input B
Background Edit
Graphic Display (manual guide i)
1 $0 $0
CUSTOM WORKHOLDING 2 $13,924 $27,848
Microcentric CB100-NK-CT Collet Chuck-100mm capacity-Draw bar actuated pull-back design-Mounting for part stop with coolant thru in ID of chuck-Spindle adapter and draw tube connector
Workholding 1 $2,607 $2,607
Microcentric CP100 Pneumatic Grip Collet Changing Fixture
Top Tooling 2 $2,339 $4,678
Microcentric 100BZI Quick Change Collet-3.5" clamp diameter with rear counterbore-6 segmented vulcanized design-Alloy steel hardened Rc 56-60 and finish ground
Locator 2 $3,736 $7,472
Microcentric Part Stop with Collant Through-Mount to stop plate in ID of collet chuck-Locaate rear face of part-Clearance to bore thru ID of part-3 angular coolant holes on inner face-A2 tool steel hardened Rc 56-60 and finish ground
GANTRY LOADER JAWS
For Part Number(s):
1 $4,032 $4,032
PLAIN TOOL HEAD (40MM SHANK)
MD120 turret has two sets of mounting holes. Plain head can be offset by moving tool
block to the rearmost set of holes to achieve the same effect as an offset tool head.
3 $588 $1,764
TURN TOOL HEAD (20MM SHANK) 2 $588 $1,176
MML OFFSET CROSS MILLING HEAD
1:1 Ratio, 4000 rpms max, ER25, external coolant
2 $4,478 $8,956
PERISHABLE TOOLING
Includes all tool holders, boring bars, sleeves, inserts, and round tooling to run off this
one part number.
TURNKEY LEVEL 2: MACHINE SETUP AND RUNOFF
- Controls to develop and debug a loader program and automation cycle for a single
customer part and process. Integration of customer supplied PPG is not included and
would be quoted separately.- Applications debug and verification of CNC cutting program. This cutting program may
be provided by the customer or supplied by MMUSA.- Installation of workholding, toolheads, cutting tools, gantry tooling.- All raw materials for cutting are to be supplied by the customer.- 2 Hour continuous run at MMUSA facility. Routine tool changes during the 2 hour run
are permitted.- The 2 hour runoff will be duplicated at the customer's facility after installation. Basic
operator training will be provided during this time.- MMUSA is not responsible for cycle time, tool life, or cutting process capability. Any
cycle times provided with this project are estimates only and are not guaranteed by
MMUSA as part of Machine Setup.
1 $19,300 $19,300
SPINDLE SELECT SWITCH
Recommended option for A/A operation
1 $3,528 $3,528
MD120GII LIST PRICE: $537,023
MD120GII PACKAGE PRICE: $537,023.00
Optional Items
Description Qty Unit List Ext. Net
MICROHINGE 140 FILTERING CHIP CONVEYOR
This rear discharge conveyor helps keep the coolant tank clean by filtering to 140
microns with self-cleaning filter boxes.
1 $19,320 $19,320
MH140
CHIP CONTROL PACKAGE- Flushing for Cutting Area
Coolant plumbing and nozzles to help reduce chip buildup in the cutting area.- Coolant gun
Located near operator door for additional cutting area cleaning by operator.
Includes a separate pump.
1 $4,536 $4,536
MP SYSTEMS RTF FIXED HIGH PRESSURE COOLANT SYSTEM
1000 PSI, Twin 8 GPM Pumps, Twin Filter, 70 gallon tank
Includes all necessary machine modifications.
Does not include high pressure through the spindles.
SEPARATE 480V ELECTRICAL DROP REQUIRED
USE OF OIL COOLANT WITH THIS UNIT REQUIRES A CHILLER
