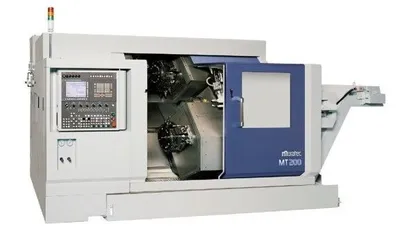

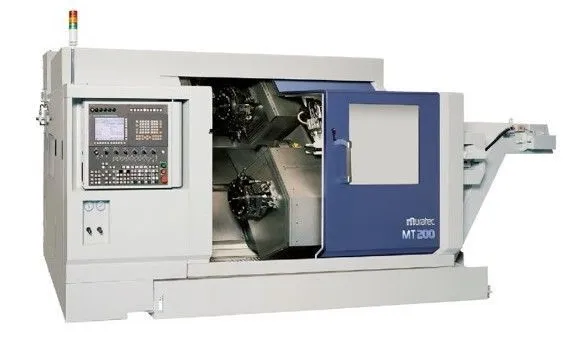

New MURATA MURATEC MT 200 T2 | Twin-Spindle CNC Lathe
Have one to sell?
ConditionNew
1 available
New
-MURATEC MT200/T2 TWIN OPPOSED SPINDLE CNC TURNING MACHINE WITH Y AXIS and LIVE TOOLING
-CHIP CONVEYOR, HINGE TYPE, RIGHT SIDE DISCHARGE
NOTE: ONLY RIGHT SIDE DISCHARGE IS AVAILABLE FOR MT200 MACHINE.
-10KG COOLANT PRESSURE UPGRADE - BOTH SIDES
LEFT SIDE SPINDLE
. 3500 RPM
. A2-8 spindle nose
. 20 HP (15kw)30-min
. Hydraulic chuck cylinders and draw bars
. Machine prepped for air/coolant blow through the spindle
. 4-point Spindle orientation (M19-M22)
. Full length tube- Max bar capacity 80mm (3.14")
TURRET x2
. 15-station independent upper tool turret
. 12-station independent upper tool turret
. Upper Turret X-Axis Travel 220 MM (8.66in)
Lower Turret X-Axis Travel 220 MM (7.87in)
. Both Turrets Z-Axis Travel 770 MM (30.31)
. Max X-Axis Travel Speed 944.8 IPM (24M/Min)
Z-Axis Travel Speed 1574.8 IPM (40M/Min)
. 6000rpm, 4.5kw Live Tool all stations
. Y-Axis all turrets 80mm (3.14")
. Coolant pressure capacity 69 bar (1,000psi)
MACHINE
. 26455 Lbs.
. 220 Volts
. 244.09"Wx80.91" D
RIGHT SIDE SPINDLE
. 4000 RPM
. A2-6 spindle nose
. 20HP(15kw)30min
. Hydraulic chuck cylinders and draw-bars
. Machine prepped for air/coolant blow through the spindle
. 4-point spindle orientation (M19-M22)
. Full length draw tube - Max bar capacity 66mm (2.55in)
. Std equipment solid draw bar
COOLANT
. 2 Independent Coolant Pumps: 6.0 Bar/87 PSI
100.38 Gal (380L) Tank
| Chuck Clamp Foot Switch |
| DUCTING PREPARATION FOR MIST COLLECTORS |
| FANUC DCS SPECIFICATION |
| LOCKING STYLE FRONT DOOR SWITCH |
| ONE-YEAR AMCHINE PARTS & LABOR WARRANTRY |
| QC AND NG CHUTES |
| QC CHECK COUNTERS |
| REMOTE OPERATION PANEL FOR GANTRY POSITION |
| SIGNAL TOWER |
| STANDARD MACHINE GUARDING |
| TOOL LOAD MONITOR FUNCTION |
| TWO-YEAR FANUC CONTROL WARRANTY |
