New TRUMPF TruMark Station 7000 (M010) lifting door | Laser Markers
Have one to sell?
ConditionNew
1 available
New
Rotary axis DA125-2 TMS 7000 (M010)
Technical specification
Center height 173 mm
Three-jaw chuck part diameter clamping range 3 mm - 40 mm
Diameter of central passage 60 mm
Travel range 360 °
Speed 150 1/min
Angular acceleration 20 rev/s2
Concentricity precision 35 μm at D120
Two-sided positioning accuracy A ≤ 0.2 °
Two-sided repeatability R ≤ 0.06 °
Maximum workpiece moment of inertia 0.02 kg*m2
Axial load 1000 N
Maximum part weight 9.6 kg for d = 125 mm, l = 100 mm for steel solid cylinder
14 kg for d = 75 mm, l = 400 mm for steel solid cylinder
20 kg for d = 90 mm, l = 400 mm for steel solid cylinder
13 kg for d = 125 mm, l = 400 mm for aluminum solid cylinder
Drive Stepping motor with belt drive
TruMark 6030 (L026)
Laser parameters
Maximum peak pulse power 40 kW at 40 kHz
Beam quality (M²) < 1.3
Wavelength 1030 nm
Laser medium Yb:YAG
Pulse duration 16 ns at 40 kHz
38 ns at 100 kHz
75 ns 200
Pulse repetition frequency 40 kHz - 200 kHz
Minimum focal diameter 50 μm
Connection and consumption
Electrical connection (voltage) 90 V - 264 V
Electrical connection (frequency) 47 Hz - 63 Hz
Electrical connection (current intensity) 8.5/15 A
Typical power input at rated power 0.4 kW
Maximum power input 1.6 kW
Structural design
Dimensions of laser head (W x H x D) 156 mm x 214 mm x 435 mm
Dimensions of supply unit (W x H x D) 446 mm x 222 mm x 495 mm
Dimensions of control PC (W x H x D) 446 mm x 133 mm x 371 mm
Weight of laser head 14.5 kg
Weight of supply unit 24 kg
Weight of control PC 8.5 kg
Installation
Laser head protection class IP64
Supply unit protection class IP20
Ambient temperature 15 °C - 40/45 °C
Relative humidity max. 90 % at 15-45°C
Marking volume 125 x 125 x 50 mm³ (1030 nm)
Technical specification
Marking volume 125 mm x 125 mm x 50 mm
Calibration accuracy of scanner ± 50 μm
TruMark Station 7000 (laser control 17)
Laser
Available marking lasers TruMark 5020, TruMark 5050, TruMark 6030, TruMark 7050
Workpiece specification
Maximum workpiece dimensions without Y axis (W x H x D) 1000 mm x 450* mm x 650 mm * Depending on laser and optics
Maximum workpiece dimensions with Y axis (W x H x D) 960 mm x 450* mm x 375 mm * Depending on laser and optics
Maximum workpiece weight (without Y axis) 100 kg
Maximum workpiece weight (with Y axis) 50 kg
Available motorized axis
Traverse path of the Z axis 500 mm
Traverse path of the X axis 650 mm
Traverse path of the Y axis 350 mm (not available for rotary table)
Z traverse speed 6 m/min
X traverse speed 6 m/min
Y traverse speed 6 m/min
Two-sided positioning accuracy A 0.08 mm
Two-sided repeatability R 0.03 mm
Dimensions and weight of work station
Dimensions of work station (W x H x D) 1150 mm x 2000 / 2525 mm x 1420* mm * for rotary table version 1625 mm
Weight of work station without integrated laser 1250 / 1400* kg * for rotary table machine

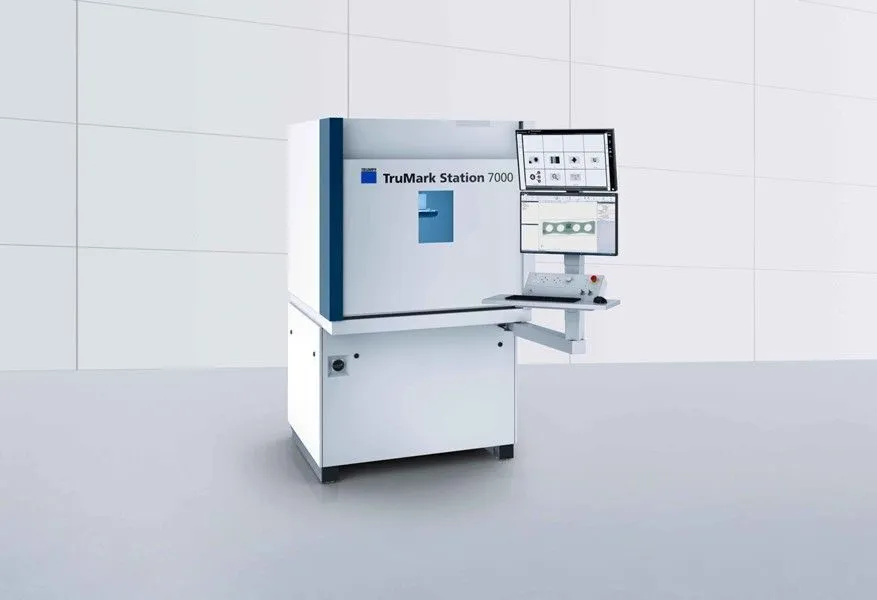

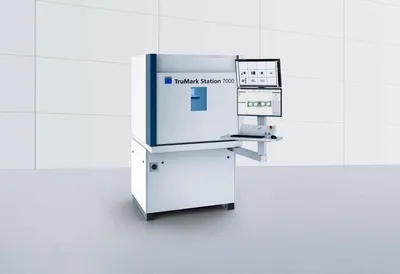

TruMark Station 7000 (M010) lifting door
• Motorized lifting door for highly productive loading of workpieces
• X-axis guide carriage mounted on the machine frame, driven by a program-controlled drive (stepping motor)
• Y-axis guide carriage mounted on the machine frame, driven by a program-controlled drive (stepping motor)
• Local extraction system on the workpiece using a positionable extraction hose
• Ergonomically designed workstation for combined seated/standing operator (laser class 1)
• High-quality construction with mineral cast plate as central element
• Automatic Z axis
• T-slotted plate
• Max. workpiece weight: 100 kg, with Y axis: 50 kg
Work station extensions
Rotary axis DA125-2 TMS 7000 (M010) 1 PCE
• Rotary axis with stepping motor for circumference marking
• Capable of integration in a swivel mechanism
Hand-operated chuck D = 125 mm 1 PCE
• Hand-operated chuck for rotary axis 125 mm
Integrated exhaust system TruMark Station 7000 (M010) 1 PCE
• Exhaust system integrated in the machine frame and connected to working area via synthetic hose
Protective filter DIN A4 (IR) 1 PCE
• Protective filter for infrared laser radiation
• Material: polymer
Loading acknowledgment 1 PCE
• Robust push-button for acknowledgement after successful loading
Preparation of rotary axis, lifting door 1 PCE
• Interface for connecting the 125 mm rotary axis for processing rotationally symmetrical components
Laser device
TruMark 6030 (L026) 1 PCE
• Marking laser TruMark 6030 (L026) with laser active medium Yb:YAG and wavelength 1030 nm
• Internal focal position control
• Pilot laser for simulation of marking content with a laser diode
• High-precision scanner head for wavelength 1030 nm
• External acousto-optical modulator for modulation of the laser pulses
• Internal power regulation of the resonator
• Supply unit with control unit including power supply, Q-switch-driver, control electronics – designed as 19" plug-in unit variant
• Industrial PC in the performance version prepared for challenging industrial environments as a 19'' plug-in unit with Windows operating system (recommended when using TruTops Mark 3D in general and especially for processing 3D components, indispensable when using VisionLine)
Marking volume 125 x 125 x 50 mm³ (1030 nm)
• Focusing lens for 1030 nm with adapter plate
• Marking volumes of 125 x 125 x 50 mm³
• Focal length f = 300 mm
Operation / programming
Comfort operating package
• 24" touch monitor: power connection cable 1.8 m, video cable 1.8 m (VGA) and 3 m (DisplayPort), 1.6 m USB 3.0 cable, weight 6.6 kg
• Keyboard (cable length 1.75 m) and mouse for operating the marking laser
TruTops Mark 2 Basic license
• Software license for the use of TruTops Mark 2 in connection with a TruMark marking laser
TruTops Mark 3D Basic license
• Software license for the use of TruTops Mark 3D in connection with a TruMark marking laser
• Software for workpiece-oriented creation of marking contents and definition of laser parameters
• 3D CAD software
• Touch-capable HMI for connection with marking laser (touch-capable monitor required)
• Contains Magic 5, a software-based assistant for the easiest adjustment of marking parameters via slider
• Updates and new software versions will be offered on the basis of license models in the future
• Unlimited time license
Extra charge for additional marking software
• Applies to parallel installation of the TTM2 and TTM3D marking software on the same laser
Navigator
• Software-based wizard for determining suitable laser parameters for customer-specific applications
Screen segmentation
• Software option for marking of large workpiece surfaces exceeding the marking field, for palletizing workpieces, and for circumference marking of cylindrical workpieces
Navigator TTM 3D
• Software-based wizard for determining suitable laser parameters for customer-specific applications on freely selectable objects, suitable for the coupled laser and the previously selected marking process
• Unlimited time license
Deep engraving
• Simple setting of the processing procedure for any depth engraving with TruTops Mark 3D
• Unlimited time license
VisionLine Detect 1
VisionLine hardware:
• On-axis and off-axis camera
• On-axis camera with focusing unit across entire marking field
• 4-way LED bar lighting for illumination of the marking field. The individual LED bar lights can be switched on separately.
• Illumination wavelength: TruMark and TruMicro Mark: 630 nm
• Distance measurement for determining the laser autofocus in the entire marking field
Software:
• Image processing for edge-detection (e.g. clumps, circles, lines or intersections) on the workpiece for position correction
Hint:
• It is not possible to retrofit the VisionLine image processing system in the field. VisionLine is currently only available in conjunction with new devices.
Please observe the notes and supplements for VisionLine in the contractual terms in the offer.
VisionLine Option Code
• Image processing for reading and grading various 1D and 2D codes
Please observe the notes and supplements for VisionLine in the contractual terms in the offer.
VisionLine Option OCR
• Image processing for character recognition (OCR - Optical Character Recognition)
Please observe the notes and supplements for VisionLine in the contractual terms in the offer.
VisionLine Option Model
• Image processing for detecting geometric features, which can be programmed in
Please observe the notes and supplements for VisionLine in the contractual terms in the offer.
Light diffuser
• For generating diffuse light
Touchscreen monitor
• 24" touchscreen monitor for full-screen display and convenient operation of VisionLine
TTM-MI medical package VisionLine
• Complete software solution for customer-specific integration of laser marking into the production process of medical products
• Software module for customer-specific sequence control by means of WSTx programming
• Software module for manual scanner-based data entry or order start
• Software module for connection to common databases
• Software module for creation of UDI codes
OPC UA interface TruMark
• PC Unified Architecture interface
• License key to activate the OPC UA interface on a TruMark laser
Remote service agreement, 2 years
• IT-secure remote diagnostics with possibility of active intervention
Accessories
TruMark Station packaging
Xchange spare parts credit system
• See technical description for details
TruMark Station 7000 Commissioning
HHH Machine Tool service specialists will perform equipment commissioning and start-up—including safety checks, operator training, and travel costs—provided the site is fully prepared. For more details, please see section Additional Information.
7500310 12 mo Extended Warranty - Used Equipment
Configuration details
TruMark Station 7000 (laser control 17)
Used work station Yes
Used marking laser Yes
Delivery country US United States of America
Mains power supply NEC
Extension of work area No
Control Panel mounting pos. Right
Image processing VisionLine Detect
VisionLine Code Yes
VisionLine OCR Yes
VisionLine Model Yes
Illumination 4 LED bars
Interface extension IOM No
OPC-UA Interface Yes
Field bus No
Remote access Via Internet
Operating system Windows 11 IoT Ent 2024 LTSC
Monitor Touchscreen
Keyboard US United States of America
Document. digital on data carr 1 PCE
Documentation on paper 1 PCE
CE/UKCA declaration Declar. of conformity ex works
Lang. EU/UKCA conform. decl. EN English
Operating system language EN English
Language TruTops Mark 3D EN English
Language TruTops Mark 2 EN English
Operator's manual language EN English
Language - Labels EN-US American English
