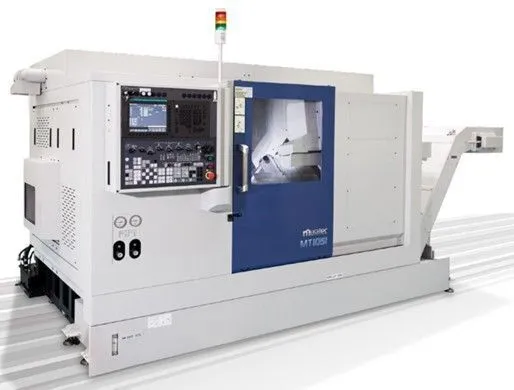

New MURATA MURATEC MT 1065 EX | Twin-Spindle CNC Lathe

Chuck size- 6inch (165mm)
Max Swing- 420mm
Max Swing(Standard plain head)- 240mm
Maximum cutting size- 220mm×620mm
Maximum bar work piece size- Left spindle φ65mm (φ110mm)，Right spindle φ51mm (φ90mm)

Number of turret stations 12 stations　(Upper and lower each)

Tool size- Rectangular shank： 20mm×20mm (Option 25mm×25mm)
Cylindrical shank： φ25mm (Option φ32mm)

Travel　(Cutting axes) Upper turret　X-axis- 160mm
Z-axis- 620mm
Y-axis- ±30mm
Lower turret　X-axis- 160mm
Z-axis- 620mm
Right spindle　Z-axis- 680mm

Rapid traverse rate　
Upper turret-　X-axix- 24m/min
Z-axis 40m/min
Y-axis- 12m/min

Lower turret-　X-axis- 24m/min
Z-axis- 40m/min

Right spindle(Zs)- 40m/min

Inner diameter of spindle bearing
Left spindle- 110mm, Right spindle- 90mm

Hole through spindle (Inner diameter of spindle bearing)
Left spindle- 77mm（110mm）, Right spindle- 62mm（90mm）

Spindle draw tube diameter (Inner diameter of spindle bearing)
Left spindle- 66mm（110mm）, Right spindle- 52mm（90mm）

Spindle nose (Inner diameter of spindle bearing)
Left spindle JIS A2-6（110mm）Right spindle JIS A2-5（90mm）

Maximum spindle speed (Inner diameter of spindle bearing)
Left spindle 4500min, Right spindle 6000min

Spindle drive motor// Standard
Left spindle 18.5kW/15min　(15kW/continuous)
Right spindle 15kW/15min　(11kW/continuous)

Parts catcher-
Handling size：65×150mm Right side
Handling weight：2.5kg

Coolant system-
Tank capacity：410L - Right side hinge belt chip conveyor
Pressure: 10 Bar / 145 PSI

Floor space- Right chip conveyor specification W3100mm×D1950mm

Total weight- With tools (Without coolant tank)： 6000kg

Power- AC200/220V(±10%) 50/60Hz

Air- Compressed air pressure required：80 PSI

Other standard accessory and function:
Air blow nozzles over chuck Right and left each 1 unit
Coolant blow nozzles over chuck Right and left each 1 unit
Foot switch Right and left each 1 unit
Work counter 8-digit, LCD display
Total counter 8-digit, LCD display
Soft tool counter 6-digit, LCD display for all stations of both turrets

Other standard accessory and function:
Only one side axis operation
Possible only one side axis operation
Operation guide function
Machine guide, Reference point return, Mcode list Alarm guide
Detailed display of alarm number, message, cause, remedy, check points
 
Live tooling specifications:
Rigid tap function- \Standard
Live tool shaft- FANUC AC servo motor/ 2.2kW　(Rating torque：11.0Nm)
Maximum speed of live tool shaft- 6000min
Tool size- 16mm　(Milling)
Standard rotation head- Face milling head/ Cross milling head
Replaceable collet- Milling collet (For milling head) AR25 Series
Spindle positioning function- C-axis positioning accuracy：±0.015°
Maximum speed：200min-1
Least command increment: 0.001°
Spindle brake- Hydraulic brake torque： Left spindle 244Nm, Right spindle
