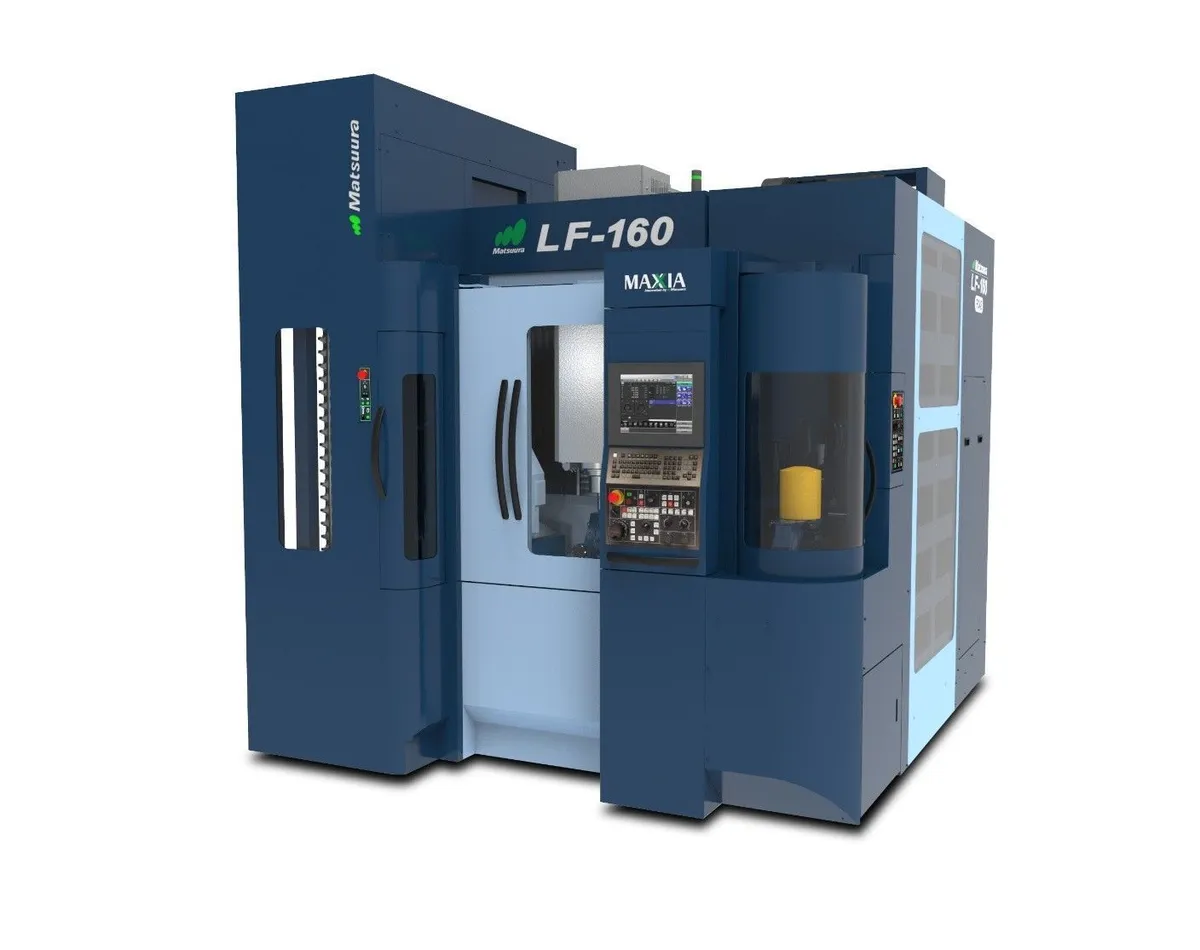

New MATSUURA LF-160 | Vertical & Horizontal Mills

SPINDLE-
46,000 RPM HSK-40E OIL-AIR LUBRICATED SPINDLE WITH COVER
INCLUDES A 2 YEAR WARRANTY ON ALL SPINDLE COMPONENTS

TOOLS-
338 TOOL MATRIX
PALLET CHANGER-
42 PALLET SYSTEM WITH METRIC PALLETS

GENERAL-
AIR BLOW FOR CHIP SWARF REMOVAL
EXTERNAL TO SPINDLE AIR BLAST WHILE CUTTING
8 SETS OF EXTRA M FUNCTION
FOR 3RD PARTY OPTION INTEGRATION - INCLUDES RELAY BOARD
3-COLOR PATROL LIGHT
RED / YELLOW /GREEN
WEEKLY TIMER
ALLOWS FOR AUTOMATIC SHUT-DOWN & AUTO START-UP WITH SPINDLE WARM UP

COOLANT-
PREPARATION FOR MIST COLLECTOR
70 BAR (1,000 PSI) COOLANT THROUGH SPINDLE PREPARATION
PREP FOR CTS & VACUUM - NO PUMPS - PREP ONLY

CHIP MANAGEMENT-
MOSNIC RD3 CHIP CONVEYOR WITH DRUM FILTER AND SPIRAL AUGERS

SOFTWARE-
EZ-5 WITH CALIBRATION BALL
SPINDLE PROBE REQUIRED
EZ-5 SCHEDULING SUPPORT FUNCTION
TOOL PRE-CHECK FUNCTION
THE CONTROL DETERMINES A LIST OF REQUIRED TOOLS FOR THE NEXT PALLET PROGRAM AND ENSURES THAT THE CORRECT TOOLS ARE AVAILABLE BEFORE BEGINNING TO CUT. ONLY USED WITH MULTI-PALLET SYSTEMS GREATER THAN PC2.
3D MODEL OF WORK ENVELOPE IN STEP/IGES/STL FORMAT
OPERATION STATUS MONITORING FUNCTION
INFORMATION OUTPUT TO MT CONNECT

FANUC PACKAGES-
MMU VALUE PACKAGE
-TOOL OFFSET PAIRS 999-PAIRS
-ADDITION OF WORKPIECE COORDINATE SYSTEM 300-PAIRS
-OPTIONAL BLOCK SKIP 9
-PROGRAM RESTART
-COORDINATE SYSTEM ROTATION
-TOOL LIFE MANAGEMENT
-PART PROGRAM STORAGE SIZE 8 MEGABYTES
-HIGH-SPEED SKIP
-COMMON VARIABLE EXPANSION (#100-#199/ #500-#999)

HIGH SPEED/ HIGH PRECISION PACKAGE + 5 AXIS PACKAGE-
-IZ-2/150NF
-NANO SMOOTHING 1 & 2
-OPTIMAL TORQUE ACCELERATION & DECELERATION
-DATA SERVER PACKAGE WITH ETHERNET CONNECTIVITY AND 4 GIGABYTES OF PROGRAM STORAGE
-16GB LARGE CAPACITY MEMORY
-TOOL CENTER POINT CONTROL
-3D CUTTER COMPENSATION
-TILTED WORKING PLANE COMMAND
-TOOL POSTURE CONTROL BY TOOL CENTER POINT CONTROL
-WORK SET-UP ERROR COMPENSATION
-INVERSE TIME FEED
