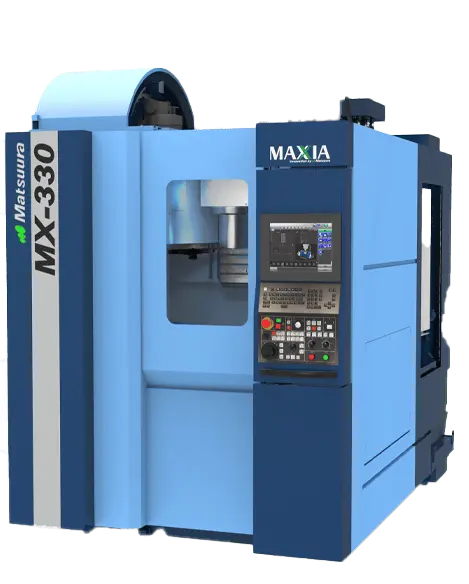

MATSUURA MX-330 - 5-AXIS VERTICAL | Machining Center
Have one to sell?
ConditionNew
New
COST EFFECTIVE | HIGH PRECISION | ERGONOMIC DESIGN
The MX-330 5-Axis Vertical Machining Center provides an effortless transition to 5-face machining for those accustomed to traditional 3-axis cutting on a vertical machining center.
The MX-330 is cost-effective and offers a large work envelope in a compact footprint. The MX-330’s exceptional ergonomics, intuitive controls, and full simultaneous 5-axis capability allow machine shops to meet their customers’ increasing demand for shorter lead-times and higher tolerances across multiple faces.
Options:
PALLETS: INCH
INPUT COMMAND ; INCH
CAT #40
15K RPM HIGH-TORQUE BT/CAT #40 GREASE LUBRICATED SPINDLE
30 TOOL MAGAZINE (#40 CHAIN TYPE, MEMORY RANDOM)

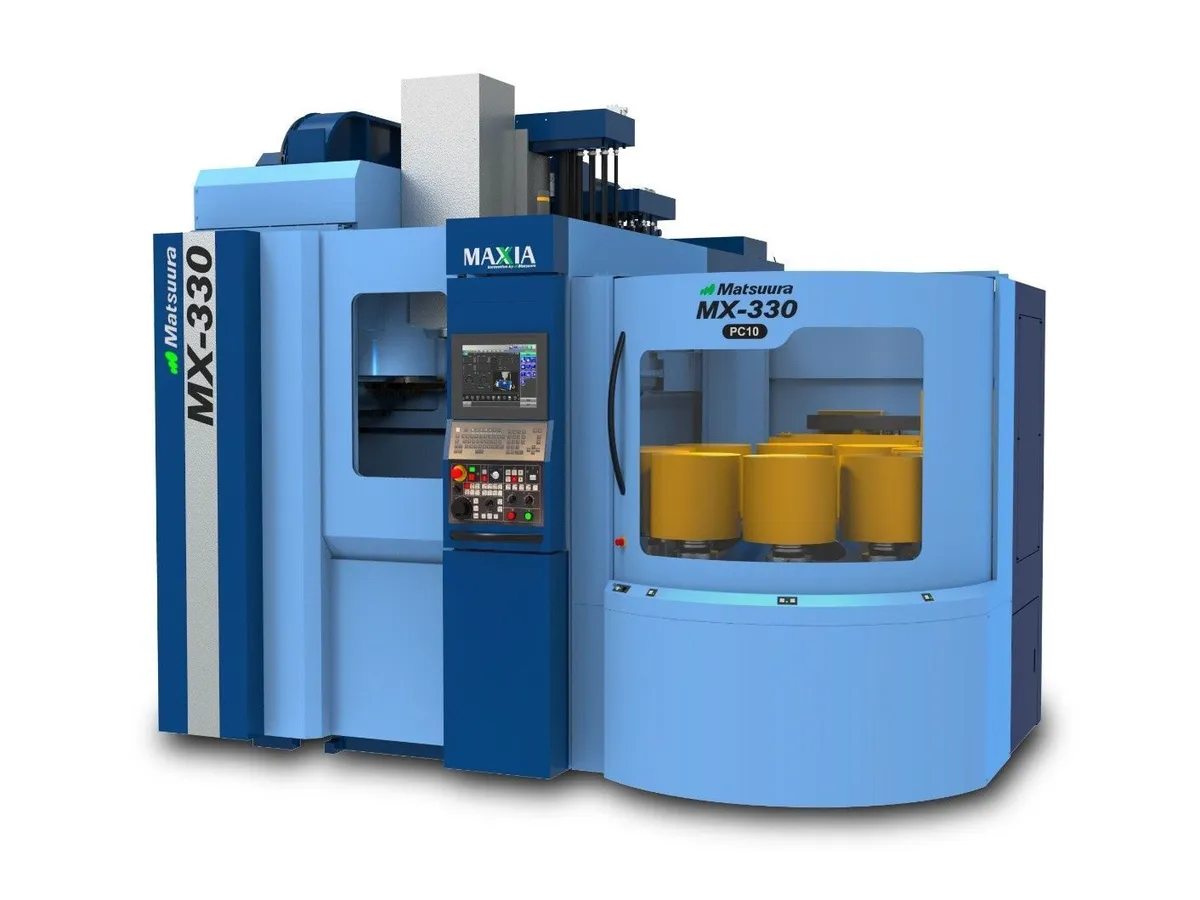

PC10 PALLET CHANGER
MANUAL PALLET ROTATION AT WORK STATION
SCALE FEEDBACK(X,Y,Z)/HEIDENHAIN SCALE
AIR BLOW FOR CHIP SWARF REMOVAL
PREPARATION FOR 1,000 PSI THROUGH SPINDLE COOLANT WITH VACUUM FUNCTION
ENVIRONMENTAL THERMAL DISPLACEMENT COMPENSATION
8 SETS OF EXTRA M FUNCTION
SPINDLE LOAD MONITORING FUNCTION
3 COLOR PATROL LIGHT (RED,YELLOW,GREEN)
Ez-5 V2 WITH CALIBRATION BALL
ROTARY WIPER (AIR SUPPLY SYSTEM)
3D MODEL OF WORK ENVELOPE IN STL/IGES/STEP FORMAT
TOOL PRECHECK FUNCTION
WEEKLY TIMER
MOSNIC SCRAPER TYPE DRUM FILTER CHIP CONVEYOR
PREPARATION FOR MIST COLLECTOR
OPERATION STATUS MONITORING FUNCTION
HIGH SPEED/HIGH PRECISION & 5-AXIS PKG
- IZ-2/150NF
- Smooth Tolerance Control
- High speed smooth TCP
- Optimum torque acceleration/deceleration
- Data Server Package (4GB)
- Large Capacity Memory (16GB SSD)
- Tilted Working Plane Command
- 3 Dimensional Coordinate System Conversion
- 3 Dimensional Manual Feed
- Manual Interruption of 3-Dimensional Coordinate
- Retraction of 3 Dimensional Rigid Tapping
- 3-Dimensional Rotary Error compensation
- 3-Dimensional cutter compensation
- Work setting error compensation
- Inverse Time Feed
MMU VALUE PACKAGE 2
- Part Program Storage Size 8MB
- Tool Offset Pairs 999-pairs
- Addition of Workpiece Coordinate System 300-pairs
- Quick Program Restart
- Tool Life Management
- Coordinate System Rotation
- Optional Block Skip 9
- Custom Macro Common Variable Expansion
- High-Speed Skip
OMP-400 &NC-4 +Combo
PQI Travel
LNS v-40 Coolant pump
Installation
AE Training
MiOS 4
INTELLIGENT PROTECTION SYSTEM VER.3
STD. MACHINE COLOUR.
SPIRAL CHIP AUGER
2 YEARS WARRANTY ON SPINDLE PARTS
2 YEARS WARRANTY ON MACHINE PARTS
