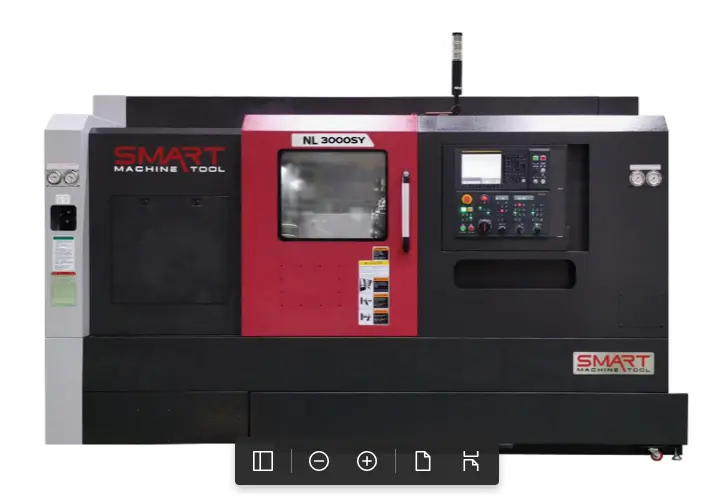

New SMART MACHINE TOOL NL 3000SY | CNC Lathes
Have one to sell?
ConditionNew
New
Swing over the bed 31.89”
Maximum turning diameter 15.51”
Maximum turning length 28.74”
MAIN SPINDLE
Chuck Size 12”
Spindle nose A2-11
Main spindle motor 25 / 35 hp
Spindle speed 2,800 rpm
Draw Tube ID 4.02”
SUB SPINDLE
Chuck Size 8”
Spindle nose A2-6
Main spindle motor 20 hp
Spindle speed 5,000 rpm
Draw Tube ID 2.0”
C axis minimum 0.001 deg
BED SLIDE & CARRIAGE
Rapid traverse (X / Z) 1,181 ipm / 1,181 ipm
Guide ways Box Way
Bed structure 30o Slant bed
TURRET
Number of tool stations 12 tools (24) (BMT65)
Turret indexing speed (1 station) 0.15 seconds
Rotating Tool Spindle Motor 10 hp
Rotating Tool RPM 5,000 rpm
MACHINE SIZE
Floor space requirements including
conveyor (L x W) 190.2” x 71.6”
CNC Model Fanuc 0i-TF Plus (15” touch screen)
Imperial
| Swing | 31.89" |
| Machining Length | 28.74" |
| # Axis | 4 |
| Chuck Size | 12" |
| Bar Capacity | 4.02" |
| Power | 35 hp |
| Max RPM | 5,000 RPM |
| Turning Dia | 15.51" |
| Sub Spindle | Yes |
Swing over the bed 31.89”
Maximum turning diameter 15.51”
Maximum turning length 28.74”
MAIN SPINDLE
Chuck Size 12”
Spindle nose A2-11
Main spindle motor 25 / 35 hp
Spindle speed 2,800 rpm
Draw Tube ID 4.02”
SUB SPINDLE
Chuck Size 8”
Spindle nose A2-6
Main spindle motor 20 hp
Spindle speed 5,000 rpm
Draw Tube ID 2.0”
C axis minimum 0.001 deg
BED SLIDE & CARRIAGE
Rapid traverse (X / Z) 1,181 ipm / 1,181 ipm
Guide ways Box Way
Bed structure 30o Slant bed
TURRET
Number of tool stations 12 tools (24) (BMT65)
Turret indexing speed (1 station) 0.15 seconds
Rotating Tool Spindle Motor 10 hp
Rotating Tool RPM 5,000 rpm
MACHINE SIZE
Floor space requirements including
conveyor (L x W) 190.2” x 71.6”
CNC Model Fanuc 0i-TF Plus (15” touch screen)
