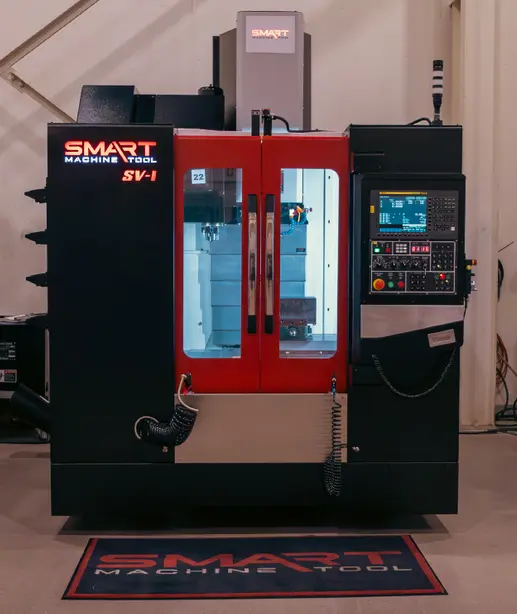

New SMART MACHINE TOOL SV 1 | Vertical Machining Centers

CAPACITY
X axis travel 23.6”
Y axis travel 17.7”
Z axis travel 19.7”
Table size 29.5” x 17.7”
Table loading capacity 661 lbs.

SPINDLE
Distance from table top to spindle nose 3.94” – 23.62”
Distance from column to spindle center 18.5”
Spindle taper CAT40 (BIG PLUS)
Spindle speed 12,000 rpm
AC Spindle motor 15/20 hp
Spindle Torque (30 min) 69 ft.-lbs.

AUTO TOOL CHANGER
Magazine capacity 24
Tool shank CAT40 (BIG PLUS)

FEED RATE
Rapid traverse (X / Y / Z) 1,890 ipm
Cutting feedrate ipm 394 ipm
Slide Ways Linear Way

GENERAL
Floor space (L x W) 76” x 109.4”
CNC Model Fanuc 0i-MF P (10.4” LCD Color Monitor)

SMART VALUE PACKAGE:
•12,000 rpm Spindle, 15 HP, Big Plus
•Spindle oil cooler
•24 Tools Double Arm ATC
•Top cover
•Coolant Bed Flush
•Coolant gun
•Air gun
•4th Axis Preparation
•Rigid Tapping
•MANUAL GUIDE I
•High Speed Machining, 200 Look Ahead
•Renishaw Receiver and GUI software
