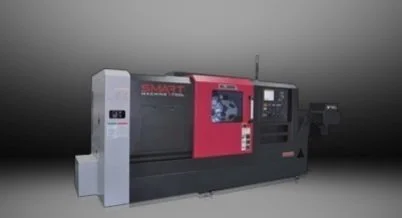

New SMART MACHINE TOOL NL 2000M | CNC Lathes

MAIN SPINDLE
Chuck Size 8”
Spindle nose A2-6
Main spindle motor 20 / 25 hp
Spindle speed 4,500 rpm
Draw Tube ID 2.64”
C axis minimum 0.001 deg

BED SLIDE & CARRIAGE
Rapid traverse (X / Z) 945 ipm / 1,181 ipm
Guide ways Box Way
Bed structure 45Deg Slant bed

TURRET
Number of tool stations 12 (24 Tools) (BMT55)
Turret indexing speed (1 station) 0.15 seconds
Rotating tool spindle motor 5 / 7.4 hp
Rotating tool RPM 5,000 rpm

TAIL STOCK
Tailstock center (Taper) MT #4 (live)
Quill travel (by hydraulic) 3.15”

MACHINE SIZE
Floor space requirements including conveyor (L x W) 150.63” x 61.06”

CNC Model Fanuc 0i-TF Plus (15” touch screen)

SMART PACKAGE:
• Tool Presetter
• Oil Skimmer
• Programmable Tailstock (Body & Quill)
• Auto Parts Catcher (Max Diameter: 2.6”, Max Length: 6.26”, Max Weight:
6.6lbs)
• Barfeeder Interface
• 140 PSI Coolant Pump
• Manual Guide i
• (1) X-Axis Live Tool Holder (*M Only)
• (1) Z-Axis Live Tool Holder (*M Only)

SMART VALUE PACKAGE:
•Chip Conveyor - Side Discharge
•1 Set of Hard Jaws
•3 Sets of Soft Jaws
•3 Color Tower Light
