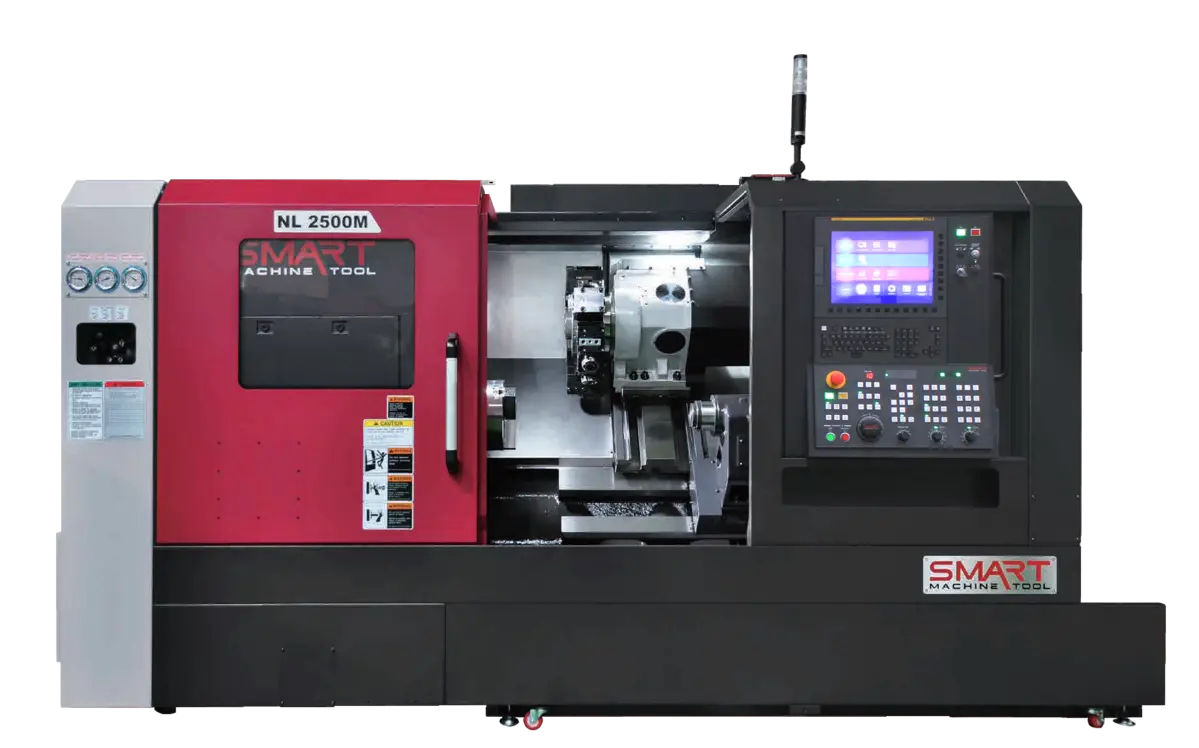

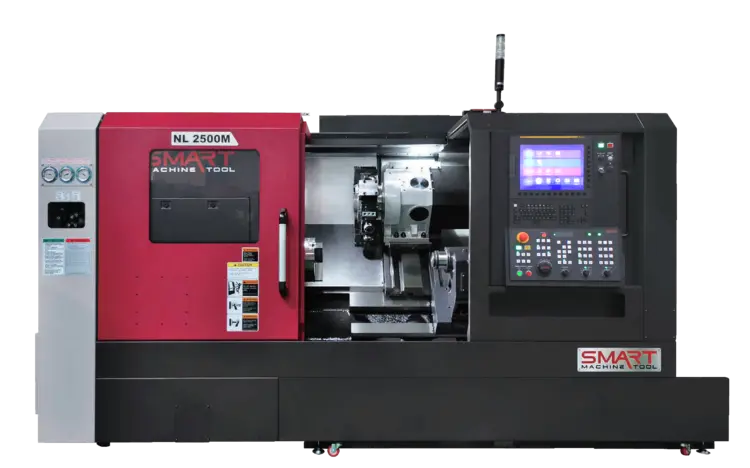

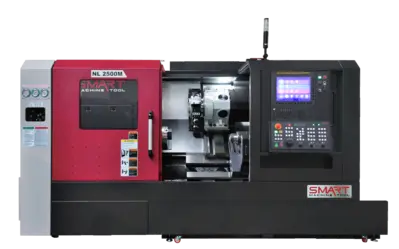

SMART MACHINE TOOL NL 2500M-750
Have one to sell?
ConditionNew
New
NL 2500M-750-BOX WAY-(10" CHUCK)
CAPACITY
Swing over the bed 27.56”
Maximum turning diameter 17.72”
Maximum turning length 27.56”
MAIN SPINDLE
Chuck Size 10”
Spindle nose A2-8
Main spindle motor 47 hp (2 Geared)
Spindle speed 4,000 rpm
Draw Tube ID 3.19”
C axis minimum 0.001 deg
BED SLIDE & CARRIAGE
Rapid traverse (X / Z) 945 ipm / 1,181 ipm
Guide ways Box Way
Bed structure 45 Deg Slant bed
TURRET
Number of tool stations 12 tools 12 (24) tools (BMT65)
Turret indexing speed (1 station) 0.2 seconds
Rotating tool spindle motor N/A 5 / 7.4 / 10 hp
Rotating tool RPM N/A 5,000 rpm
TAIL STOCK
Tailstock center (Taper) MT #4 (built-in)
Quill travel (by hydraulic) 3.94”
MACHINE SIZE
Floor space requirements including conveyor (L x W) 184.65” x 66.06”
CNC Model Fanuc 0i-TF Plus (15” touch screen)
SMART PACKAGE:
• Tool Presetter
• Oil Skimmer
• Programmable Tailstock (Body & Quill)
• Barfeeder Interface
• Manual Guide i
• (1) X-Axis Live Tool Holder (*M Only)
• (1) Z-Axis Live Tool Holder (*M Only)
SMART VALUE PACKAGE:
• Chip Conveyor - Side Discharge
• 140 PSI Coolant Pump
• 1 Set of Hard Jaws
• 3 Sets of Soft Jaws
• 3 Color Tower Light
NL 2500M-750-BOX WAY-(10" CHUCK)
Imperial
| Swing | 27.56" |
| Machining Length | 27.56" |
| # Axis | 2 |
| Chuck Size | 10" |
| Bar Capacity | 3.19" |
| Power | 47 hp |
| Max RPM | 4,000 RPM |
| Turning Dia | 17.72" |
| Tailstock | Yes |
| Live Tooling | Yes |
| Tailstock | '' |
| Live Tooling | '' |
CAPACITY
Swing over the bed 27.56”
Maximum turning diameter 17.72”
Maximum turning length 27.56”
MAIN SPINDLE
Chuck Size 10”
Spindle nose A2-8
Main spindle motor 47 hp (2 Geared)
Spindle speed 4,000 rpm
Draw Tube ID 3.19”
C axis minimum 0.001 deg
BED SLIDE & CARRIAGE
Rapid traverse (X / Z) 945 ipm / 1,181 ipm
Guide ways Box Way
Bed structure 45 Deg Slant bed
TURRET
Number of tool stations 12 tools 12 (24) tools (BMT65)
Turret indexing speed (1 station) 0.2 seconds
Rotating tool spindle motor N/A 5 / 7.4 / 10 hp
Rotating tool RPM N/A 5,000 rpm
TAIL STOCK
Tailstock center (Taper) MT #4 (built-in)
Quill travel (by hydraulic) 3.94”
MACHINE SIZE
Floor space requirements including conveyor (L x W) 184.65” x 66.06”
CNC Model Fanuc 0i-TF Plus (15” touch screen)
SMART PACKAGE:
• Tool Presetter
• Oil Skimmer
• Programmable Tailstock (Body & Quill)
• Barfeeder Interface
• Manual Guide i
• (1) X-Axis Live Tool Holder (*M Only)
• (1) Z-Axis Live Tool Holder (*M Only)
SMART VALUE PACKAGE:
• Chip Conveyor - Side Discharge
• 140 PSI Coolant Pump
• 1 Set of Hard Jaws
• 3 Sets of Soft Jaws
• 3 Color Tower Light
