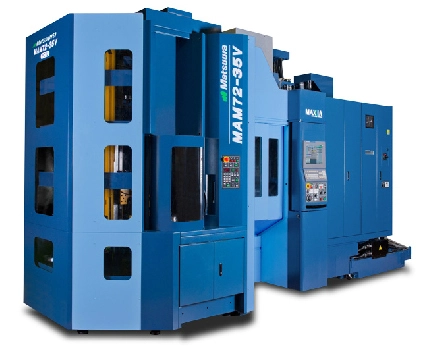

New MATSUURA MAM72-35V | Vertical Machining Centers (5-Axis or More)

SPINDLE OPTIONS
20,000 RPM HIGH-SPEED BT #40 OIL-AIR LUBRICATED SPINDLE WITH COVER
INCLUDES 2 YEAR WARRANTY ON SPINDLE COMPONENTS

PALLET CHANGER OPTIONS
32 PALLET SYSTEM WITH MM PALLETS

TOOL OPTIONS
330 TOOL MATRIX

MACHINE OPTIONS

SCALE FEEDBACK FOR (X,Y,Z) AXIS/ HEIDENHAIN SCALE
HEIDENHAIN LINEAR GLASS SCALE FEEDBACK - B & C AXIS ARE STANDARD WITH ROTARY SCALES

(8) EXTRA M-FUNCTIONS
FOR 3RD PARTY ACCESSORY INTEGRATION

3-COLOR PRODUCTION MONITORING LIGHT

PROGRAMMABLE TAILSTOCK

AIR BLOW FOR CHIP SWARF REMOVAL

WEEKLY TIMER
7-DAY AUTOMATIC POWER-UP AND AUTOMATIC POWER-DOWN FUNCTION

AIR DRIVEN ROTARY WIPER

COOLANT OPTIONS
70 BAR (1,000 PSI) COOLANT THROUGH SPINDLE PREPARATION
PREP FOR CTS – NO PUMPS – PREP ONLY

PREPARATION FOR MIST COLLECTOR

COOLANT FLOW CHECK – EXTERNAL COOLANT SYSTEM
CHECKS COOLANT FLOW OF EXTERNAL COOLANT SYSTEM – ALARMS IF NO FLOW SENSED

CONVEYOR OPTIONS
MOSNIC RD-3C CHIP CONVEYOR WITH DRUM FILTER
FILTERS CHIPS DOWN TO 50 MICRONS IN SIZE

PROBING OPTIONS
SPINDLE PROBE – RENISHAW OMP-400

LASER TOOL SETTER – RENISHAW NC4 BLUE

SOFTWARE OPTIONS
SPINDLE LOAD MONITORING FUNCTION
ALLOWS AN OPERATOR TO TEACH REFERENCE TORQUE VALUES FOR THE FEED AND SPINDLE AXIS FOR A NEW TOOL. WHEN A TOOL REACHES A WARNING LEVEL THE OPERATOR IS NOTIFIED. IF THE TORQUE VALUES REACH ANOTHER LIMIT THE MACHINE IS HALTED.

TOOL PRE-CHECK OPTION
THE CONTROL DETERMINES A LIST OF REQUIRED TOOLS FOR THE NEXT PALLET PROGRAM AND ENSURES THAT THE CORRECT TOOLS ARE AVAILABLE BEFORE BEGINNING TO CUT.

EZ-5 - MATSUURA ENGINEERED KINEMATICS OPTION W/ CALIBRATION BALL
REQUIRES IN-PROCESS MEASURE PROBE

OPERATION STATUS MONITORING FUNCTION

3D MODEL OF WORK ENVELOPE IN STEP FORMAT

FANUC PACKAGES
MMU VALUE PACKAGE
o TOOL OFFSET PAIRS 999-PAIRS
o ADDITION OF WORKPIECE COORDINATE SYSTEM 300-PAIRS
o OPTIONAL BLOCK SKIP 9
o QUICK PROGRAM RESTART
o COORDINATE SYSTEM ROTATION
o TOOL LIFE MANAGEMENT
o PART PROGRAM STORAGE SIZE 8 MEGABYTES
o HIGH-SPEED SKIP
o COMMON VARIABLE EXPANSION (#100-#199/ #500-#999)

HIGH SPEED/ HIGH PRECISION PACKAGE + 5 AXIS PACKAGE
o IZ-2/150NF
o SMOOTH TOLERANCE CONTROL
o HIGH SPEED SMOOTH TCP
o OPTIMAL TORQUE ACCELERATION & DECELERATION
o DATA SERVER PACKAGE WITH ETHERNET CONNECTIVITY AND 4 GIGABYTE OF PROGRAM STORAGE
o LARGE CAPACITY MEMORY (16 GB SSD)
o TILTED WORK PLANE COMMAND
o 3-DIMENSIONAL COORDINATE SYSTEM CONVERSION
o 3-DIMENSIONAL MANUAL FEED
o MANUAL INTERRUPTION OF 3-DIMENSIONALCOORDINATE
o RETRACTION OF 3-DIMENSIONAL RIGID TAPPING
o 3-DIMENSIONAL ROTARY ERROR COMPENSATION
o 3-DIMENSIONAL CUTTER COMPENSATION
o WORK SET-UP ERROR COMPENSATION
o INVERSE TIME FEED
